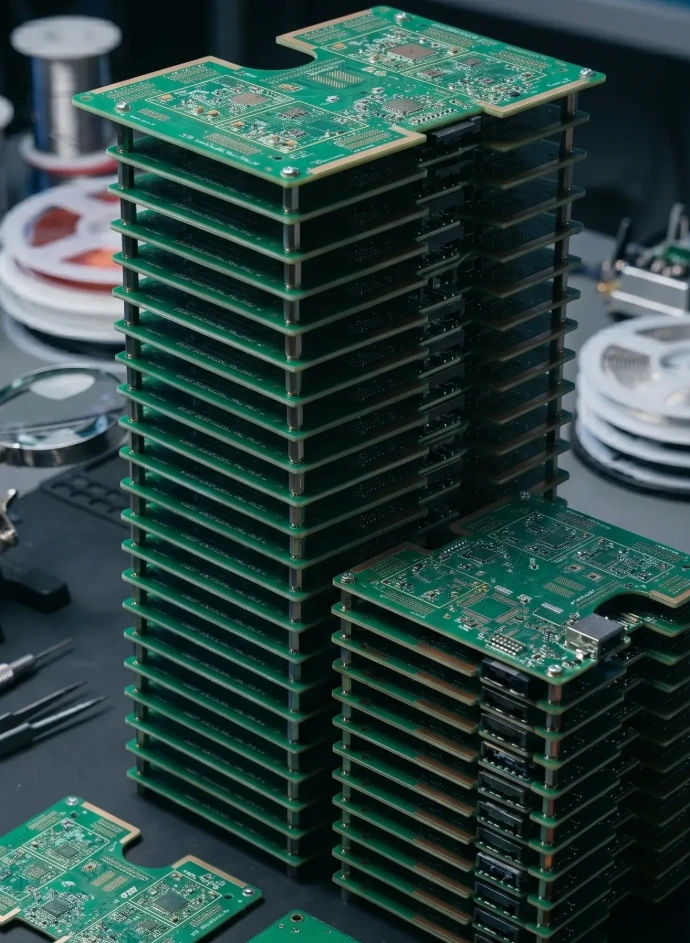

PCB Fabrication Services
What materials are available for PCB fabrication?
FR-4 (IPC-4101/21/24/26/124/126), Bergquist Aluminum/Copper Core, Polyimide/Kapton (IPC-4101/40), Taconic TSM-DS TLY-5 & DS3, and Rogers 3000/4000/5000/6000 Series.
What copper weights are supported for inner layers?
Maximum copper weight for planes is 6 oz, for signals is 4 oz, and minimum copper weight is 0.25 oz.
What is the maximum panel size?
Maximum panel size is 24 x 30 inches, with 22 x 28 inches usable area.
What are the lamination specifications?
Maximum layer count is 22. Board thickness ranges from 5 mil (minimum) to 250 mil (maximum).
What are the trace and space specifications?
Inner layer trace and air gap ranges from 3 mil (0.25 oz Cu) to 15 mil (4 oz Cu). Outer layer line and space ranges from 3 mil (0.5 oz Cu) to 15 mil (4 oz+).
What are the annular ring and clearance specifications?
Outer layer annular ring >13 mil, inner layer clearance >25 mil, and thermal pads >15 mil — all measured over finished hole size.
What panel thickness tolerances are maintained?
Precise panel thickness tolerances are maintained across all PCB fabrication orders to ensure uniformity and consistency.
What special technologies are available?
Flush circuits, switch plates, heat sinks, heavy copper up to 8 oz, blind/buried/plugged vias, hardware installation, and selective gold.
What dielectric thicknesses are supported?
Standard dielectric thicknesses range from 0.004 to 0.125 inches.
Start Your PCB Fabrication Project
Share your project requirements and a member of the PCB Power team will get in touch to discuss your fabrication needs.
Industries We Serve
PCB Power supports application-specific PCB requirements across defense, aerospace, medical, automotive, robotics, and industrial electronics sectors.
Why Choose PCB Power
Reliable PCB services for engineers and teams across the United States — from prototype to production.
Complete PCB Services in One Place
Layout, fabrication, assembly, sourcing, stencil, and turnkey — all through one coordinated workflow.
Advanced Technical Capabilities
Support for complex PCB requirements across demanding industries and specialized applications.
Quick-Turn and Prototype-Ready
Responsive turnaround options to keep prototype and production timelines on track.
Assured & Certified Quality
Every PCB project is handled with strict process controls and quality standards to ensure reliable, high-performance outcomes across all applications.
How to Order from PCB Power
Placing a PCB order with PCB Power is simple, transparent, and fully supported at every step.
1
Place an Inquiry
Visit the service page or contact form and share your PCB requirements along with relevant project details.
2
Get Quote
Review the detailed PCB quote and approve it to move forward.
3
Manufacturing
Your PCB order is processed through the applicable service workflow — fabrication, assembly, or both.
4
Quality Check
Each PCB goes through inspection and quality checks to meet project specifications.
5
Delivery
Your completed PCB order is packed and shipped within the agreed timeline.
Our Certifications
Certified processes that support quality, consistency, and confidence across every PCB project.
IPC Certified Process
Supports reliable PCB manufacturing through recognized industry quality standards.
ISO 9001:2015 Quality Management
Reflects our structured approach to quality assurance and customer satisfaction.
RoHS Certified Process
Supports PCB manufacturing within defined restricted substance compliance limits.
International Traffic in Arms Regulation
Enables controlled support for defense and sensitive electronics requirements.
Defense Logistics Agency Approved
Supports access to controlled technical data for qualified defense-related projects.
Our Latest Blogs
Stay informed with useful PCB insights covering design, fabrication, assembly, production processes, and industry trends
Frequently asked questions
Here are some common questions about our company.
PCB fabrication is the process of producing a printed circuit board from a set of design files. It involves processing base materials, applying copper layers, drilling holes, and applying surface finishes to create a board ready for component assembly.
PCB Power accepts standard industry file formats including Gerber (RS-274X), ODB++, and drill files (Excellon). Design files should include all layer data, drill information, and fabrication notes.
PCB fabrication services are available for rigid, flex, rigid-flex, HDI, multilayer, and heavy copper PCBs — across standard and advanced technology requirements.
PCB fabrication services are supported by IPC-6012, ISO 9001:2015, ITAR, RoHS, UL, and DLA DD2345 certified processes — ensuring compliance across commercial, industrial, and defense applications.
Yes. PCB fabrication services are available for prototype quantities as well as larger production runs, with support for both standard and custom board specifications.
